1500W 2000W 3000W Handheld Laser Welding Machine

Fiber Laser Welding Machine
The latest generation of hand-held laser welding machine, adopts the stable and maintenance-free continuous fiber laser with a swing welding joint. Compared with the first generation laser hand-held welding machine, it has the advantages of greater penetration and wider weld machine without maintenance. The laser welding machine has the advantages of simple operation, beautiful welding effects, and fast welding speed.
It can replace the traditional argon arc welding and welding process perfectly in the aspects of thin stainless steel plate, iron plate, aluminum plate and other metal materials.
The whole machine adopts integrated structure, simple operation and easy to learn, no special work certificate is required.
power:
Availability:
Quantity:
  • DHW

  • DOYA

Fiber Laser Welding Machine

The latest generation of hand-held laser welding machine, adopts the stable and maintenance-free continuous fiber laser with a swing welding joint. Compared with the first generation laser hand-held welding machine, it has the advantages of greater penetration and wider weld machine without maintenance. The laser welding machine has the advantages of simple operation, beautiful welding effects, and fast welding speed.
It can replace the traditional argon arc welding and welding process perfectly in the aspects of thin stainless steel plate, iron plate, aluminum plate and other metal materials. The whole machine adopts integrated structure, simple operation and easy to learn, no special work certificate is required.


Laser power: 1000W 1500W 2000W
Laser source brand: Raycus/Max/BWT(optional)
Fiber laser width: 10m, 15m, 20m (optional)
Cooling system: Water cooling

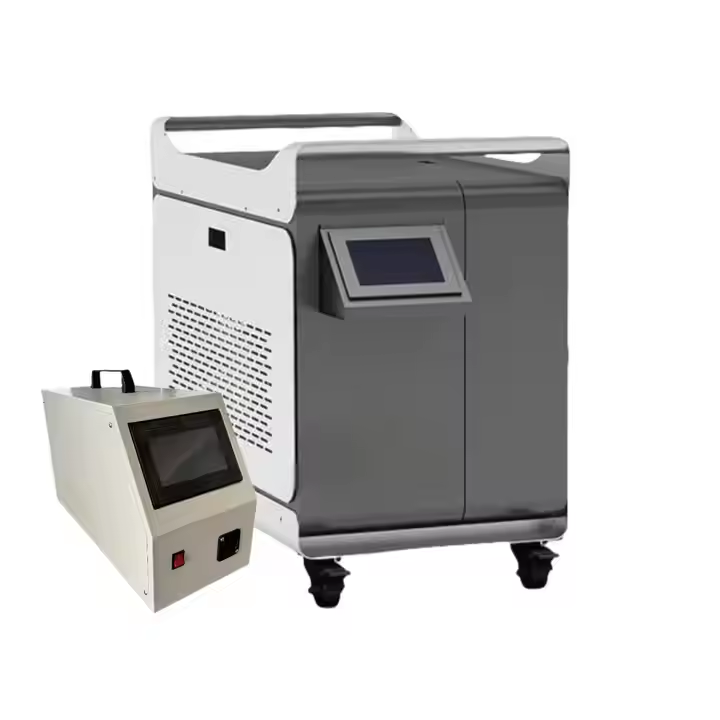

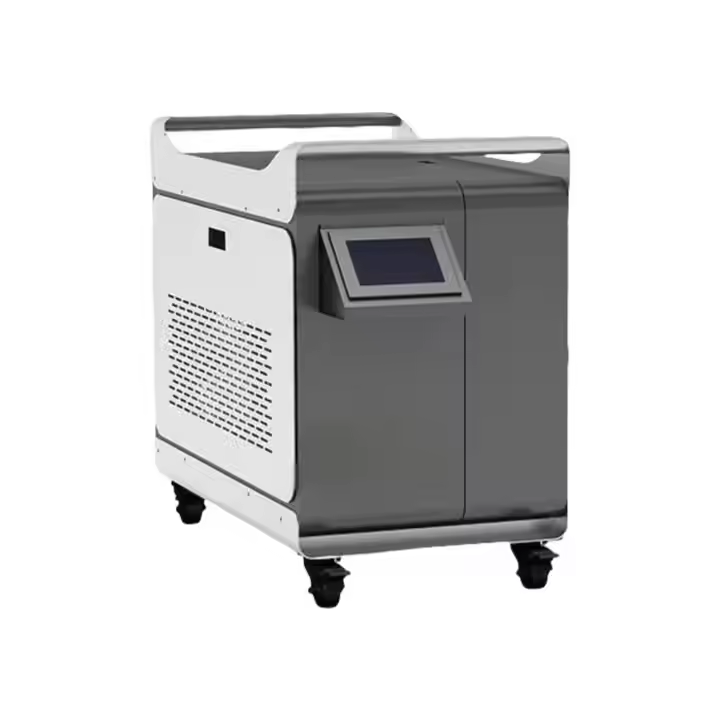

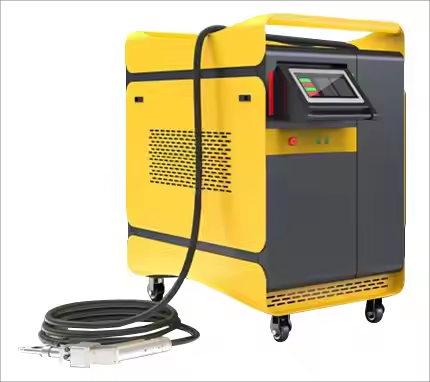

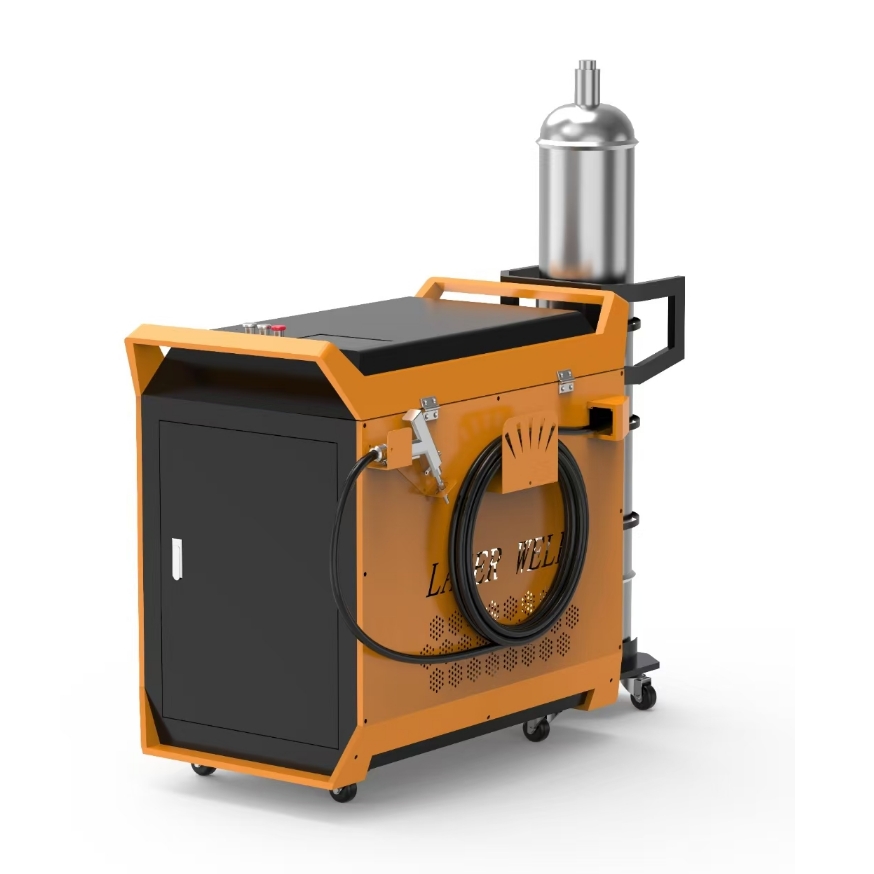

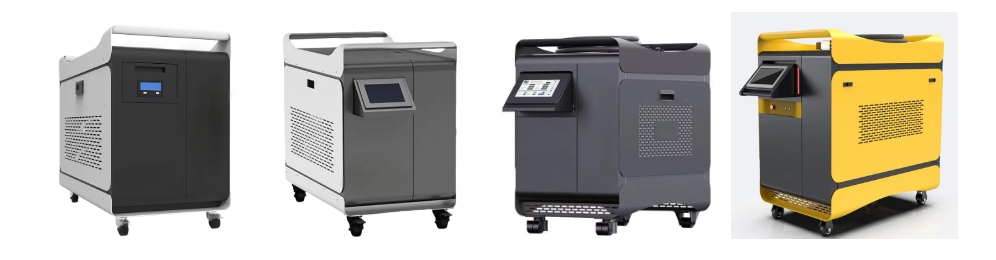

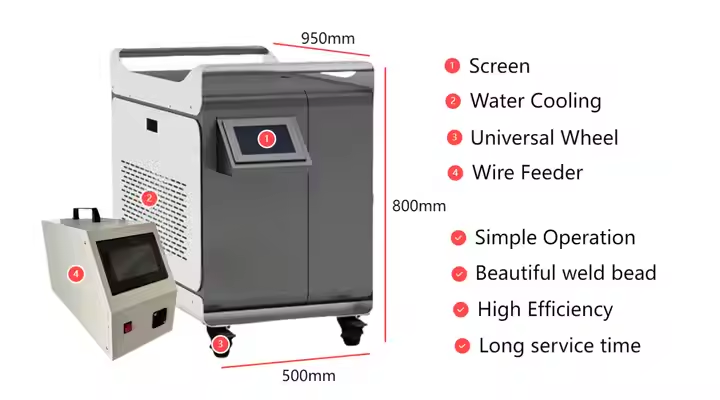

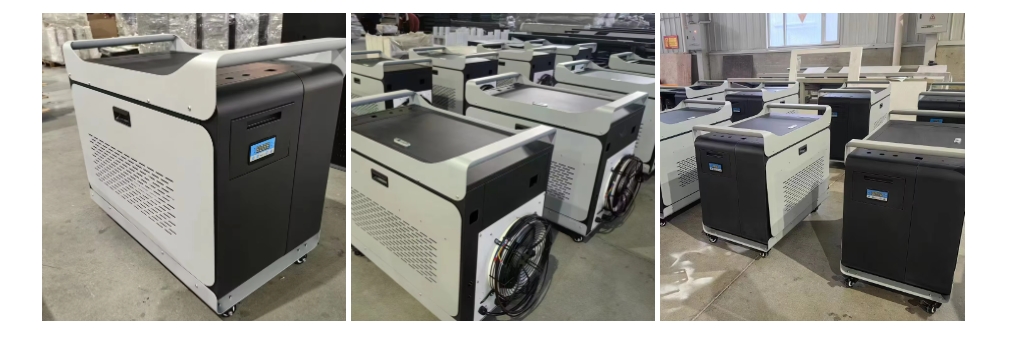

产品详情细节Product Details产品细节图1产品图2产品细节图3产品细节图2

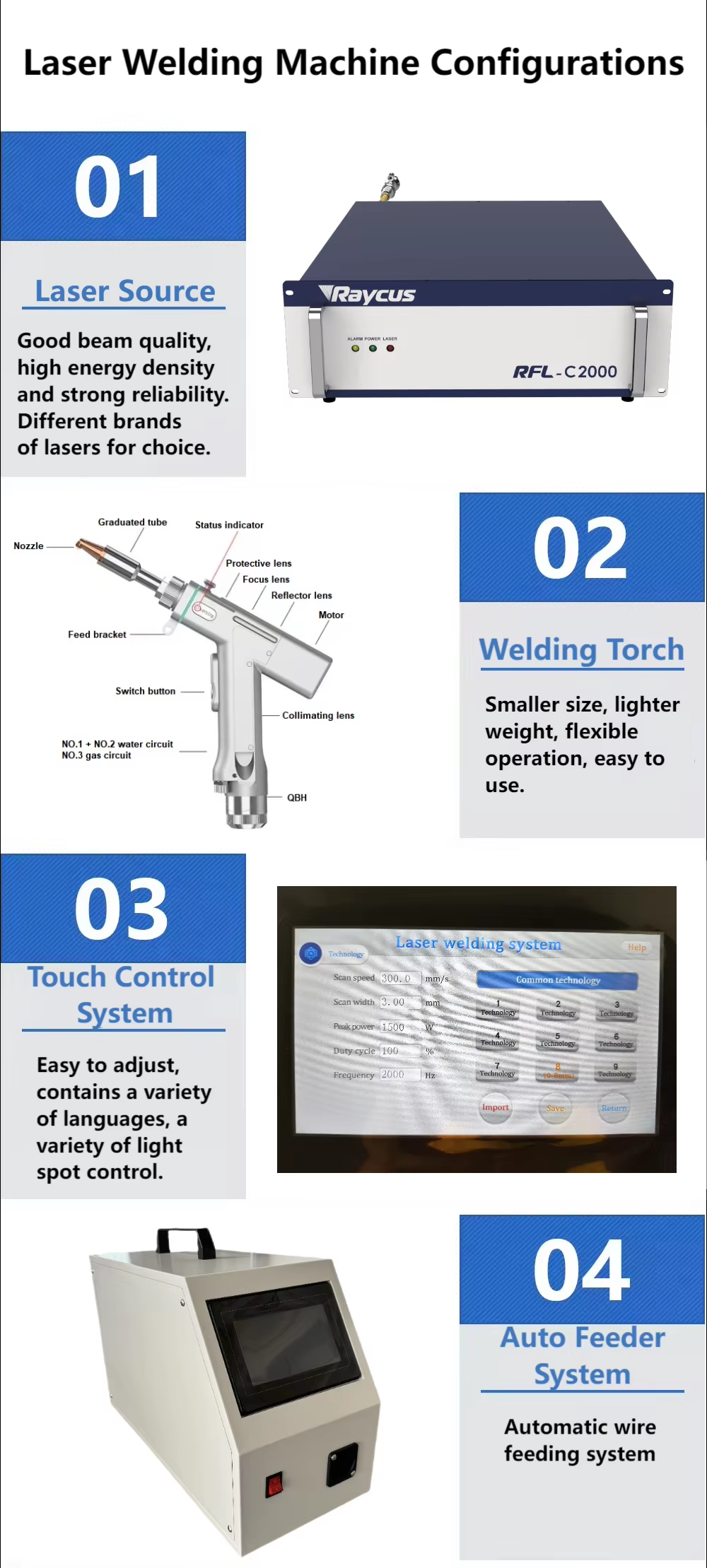

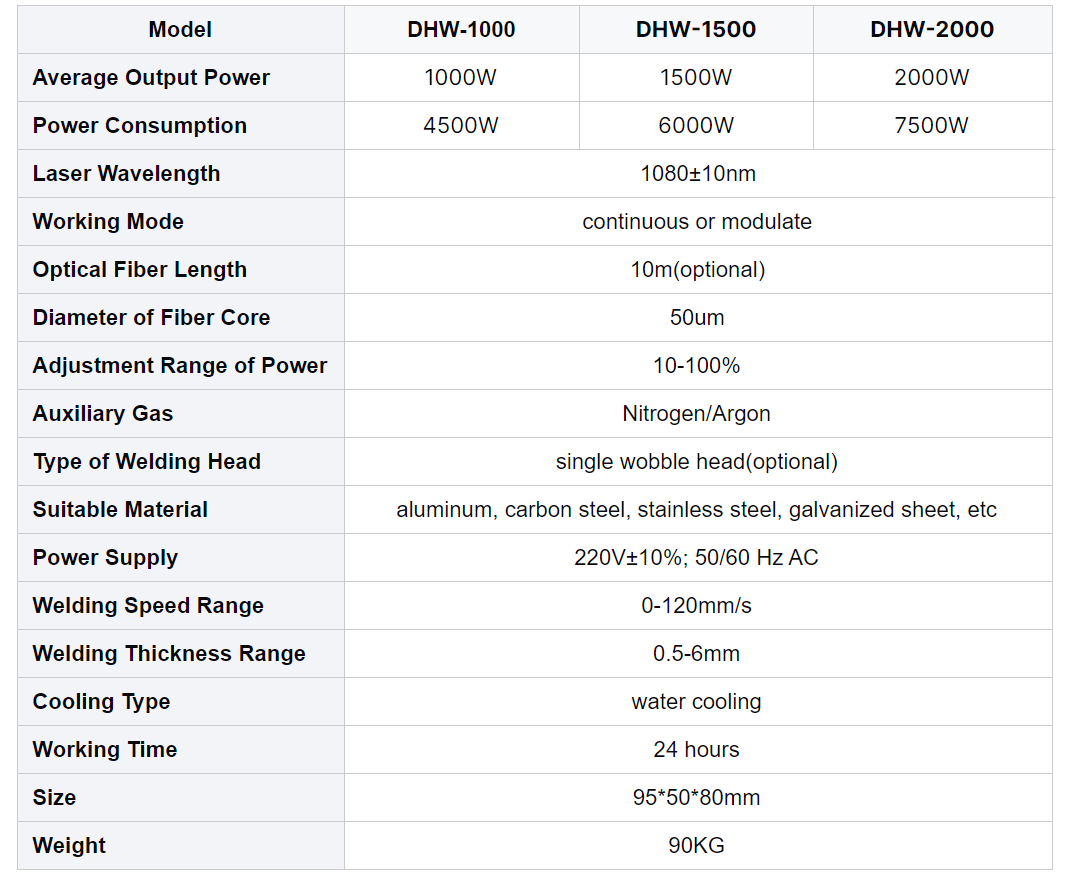

技术细节Technical Details

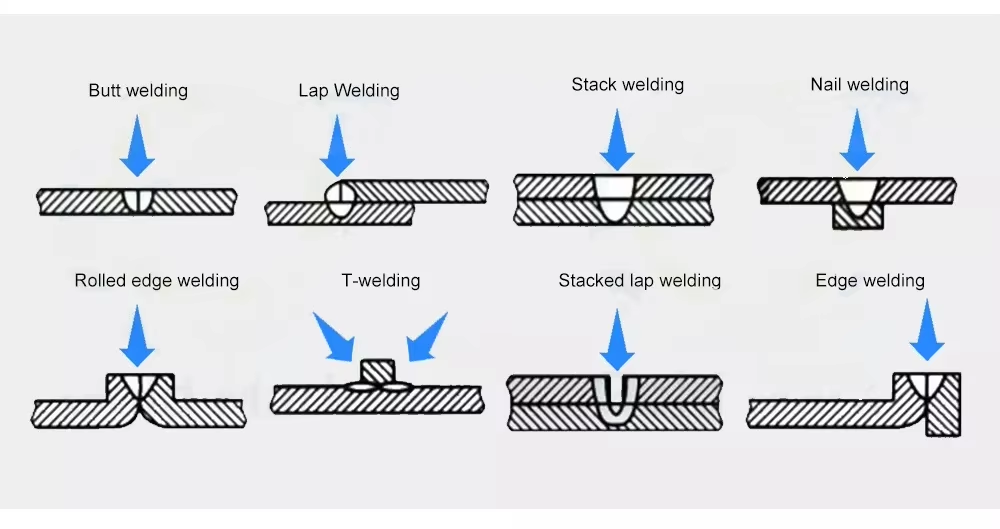

技术细节焊接方式welding way焊接方式示例细节sample details lmages

6-2

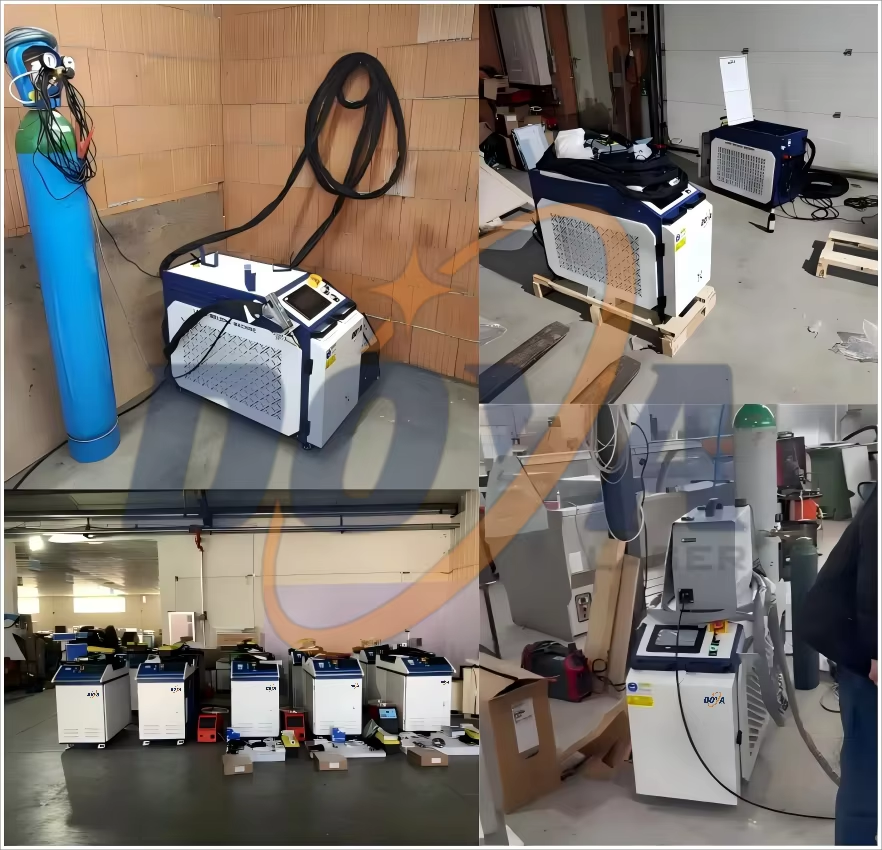

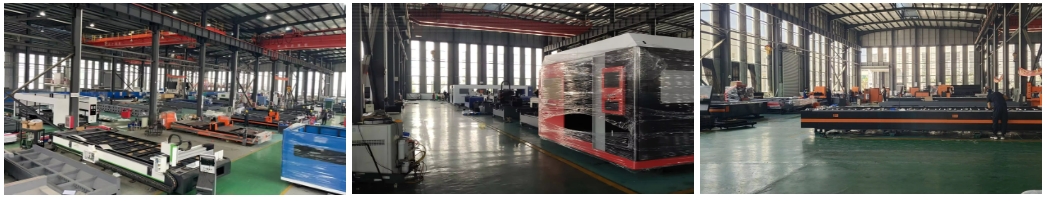

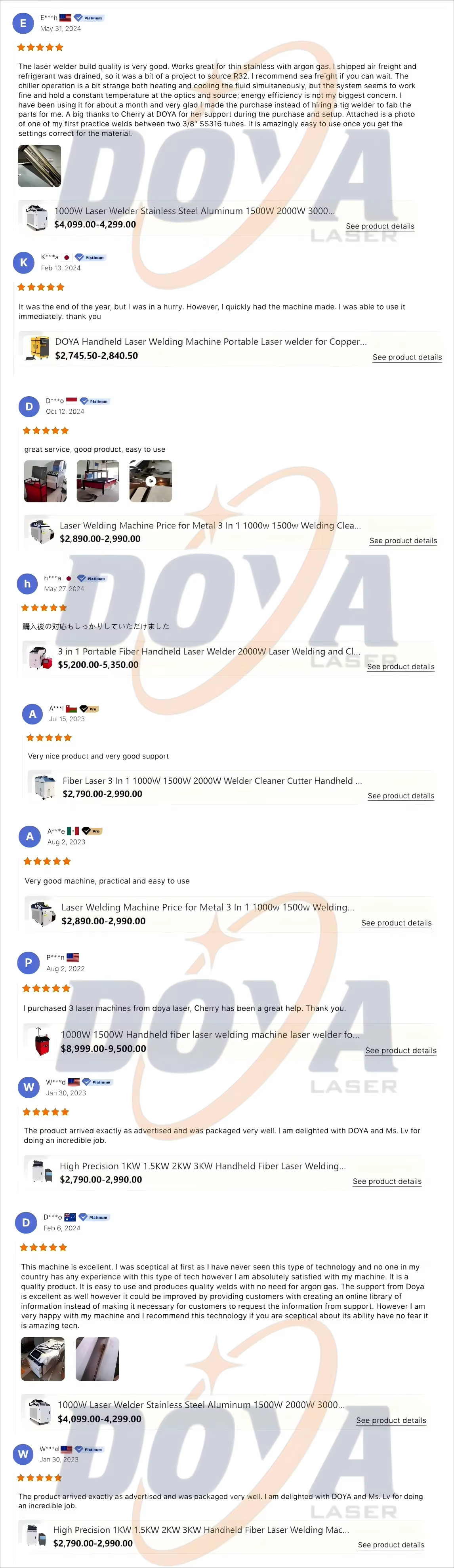

客户分享与反馈好评客人收货图片工厂展示factory show工厂图片工厂展示

After-sales service & Customer visiting:

1.Two years for laser source, one year for other spare parts free and lifelong maintenance.
2.Plenty of technical support online is available.
3.Quick Back-up PartsAvailable&Technical Assistance.
4."Training Video","Instruction Book",and"Operation Manual"will be offered.

包装送货 packing delivery包装

According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.证书认证 certifications证书展会 exhibition展会图片

4

5

13

Model DHW-1000 DHW-1500 DHW-2000 DHW-3000
Average Output Power 1000W 1500W 2000W 3000W
Power Consumption 4500W 6000W 7500W 9000W
Laser Wavelength 1070nm
Working Mode continuous or modulate
Optical Fiber Length 10m(customize)
Diameter of Fiber Core 50um
Adjustment Range of Power 10-100%
Auxiliary Gas nitrogen/argon
Fiber Connection QBH
Type of Welding Head single/double wobble head(optional)
Suitable Material aluminum, carbon steel, stainless steel, galvanized sheet, etc
Power Supply 220V ± 10%,380V ± 10%/50/60 Hz AC
Welding Speed Range 0-120mm/s
Welding Thickness Range 0.5-6mm
Cooling Type water cooling
Working Time 24 hours
Working Temperature 0℃ - 40℃
Size

131cm*71cm*131cm

Weight 200kg
