Common Problems And Practical Solutions for Stainless Steel Laser Cutting

Laser cutting is one of the most efficient methods for stainless steel processing, offering advantages such as high precision, smooth cut edges, and high production efficiency. However, in actual production, manufacturers often encounter various cutting defects — ranging from burrs and rough cut edges to incomplete cutting or excessive melting. These issues are closely related to key process parameters including cutting speed, laser power, focus position, and auxiliary gas pressure.

To achieve stable, high-quality stainless steel cutting, the key lies in understanding how these parameters influence the cutting mechanism, as well as how to troubleshoot and resolve common issues. This article summarizes typical problems users face in stainless steel laser cutting and provides practical solutions based on engineering practice, helping optimize cutting quality, reduce downtime, and improve production efficiency.

01 Why Is Stainless Steel Laser Cutting More Difficult?

Several properties of stainless steel directly affect laser processing results, as detailed below:

● High reflectivity

● High thermal conductivity

● High melting point

● Prone to oxidation when overheated

● High sensitivity to gas pressure and focus height

Even small deviations in process parameters can quickly degrade cutting quality. Therefore, precise parameter matching and proper nozzle selection are critical.

02 Troubleshooting Guide for Common Issues in Stainless Steel Laser Cutting

Listed below are the most frequent issues encountered during fiber laser cutting of stainless steel, along with recommended solutions:

Cutting Defect	Possible Causes	Solutions

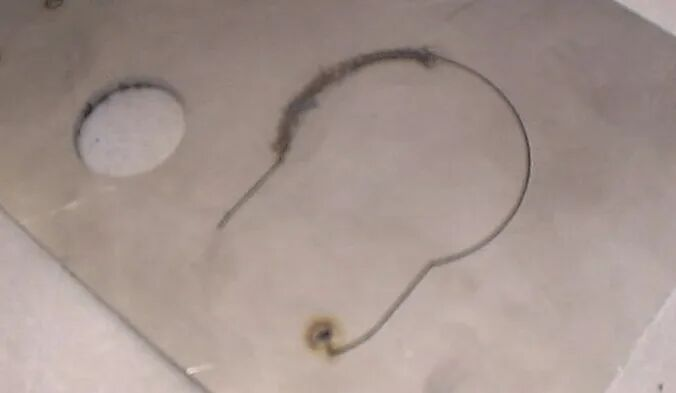

Incomplete cutting	1. Excessively high cutting speed; 2. Overly low focus position; 3. Insufficient laser power	1. Reduce cutting speed; 2. Raise the focus position; 3. Increase laser power
Cut deviation	1. Misaligned beam centering/coaxiality; 2. Deformed or rough nozzle bore; 3. Optical path offset	1. Check and recalibrate the beam center; 2. Inspect the nozzle and replace if necessary; 3. Verify optical path alignment

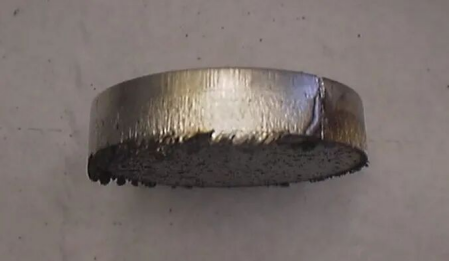

Melting on the upper cut edge	Overly low focus position	Raise the focus position by 0.1–0.2 mm per adjustment

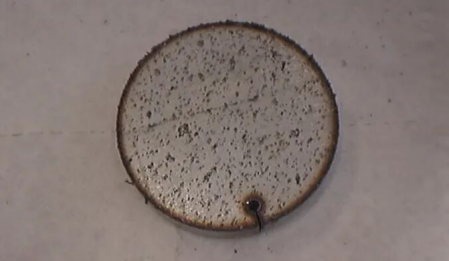

Severe oxidation on cut edge	Insufficient nitrogen pressure	Increase nitrogen pressure

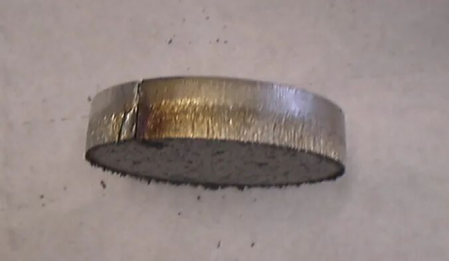

Roughness on the lower cut edge	Overly high focus position	Lower the focus position by 0.1–0.2 mm per adjustment

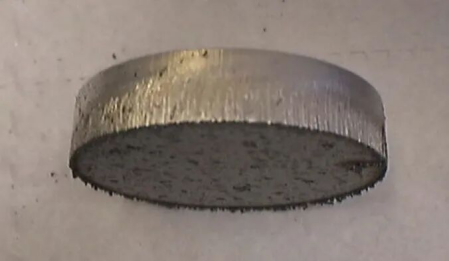

Streaks on the cutting surface	Excessively high cutting speed	Reduce cutting speed by 50–200 mm/min per adjustment

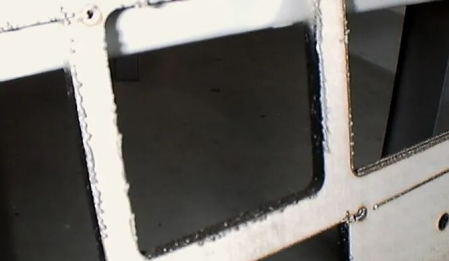

Dross adhesion on the upper cut edge	Overly low focus position	Raise the focus position in increments of 0.1–0.2 mm

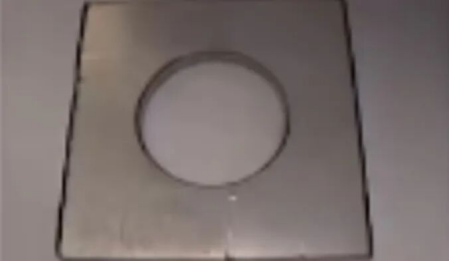

Yellowish or dull cut edge	1. Insufficient nitrogen purity; 2. Air or oxygen contamination in the gas line; 3. Leakage in the gas system	1. Check and ensure nitrogen purity; 2. Extend purging time to clean the gas line; 3. Inspect the gas system for leaks

Issues during stainless steel laser cutting are predictable and controllable. Most quality problems can be quickly identified by checking focus height, nozzle condition, gas pressure, and cutting speed. To maintain stable cutting quality, the following practices are recommended:

● Use high-purity nitrogen or oxygen

● Replace nozzles regularly

● Keep ventilation and gas supply systems clean

● Clean lenses and protective windows frequently

● Ensure accurate optical path alignment and coaxiality

● Avoid excessive ablation or power overload
