DCM
DOYA
CW Fiber Laser Cleaning Machine
CW handheld laser cleaning machine filled in the blank of hand-held cleaning in laser equipment industry, using the latest generation fiber
laser source and independently developed. Its advantages are simple operation, cleaning metal rust on thin stainless steel plate, iron plate,
aluminum plate and other metal materials.
Laser power: 1000W 1500W 2000W 3000W 6000W
Laser source brand: Raycus/Max/Jpt/Reci (optional)
Features:
1.High efficiency.
2.Simple interface operation.
3.Hand-held design is easy to carry.

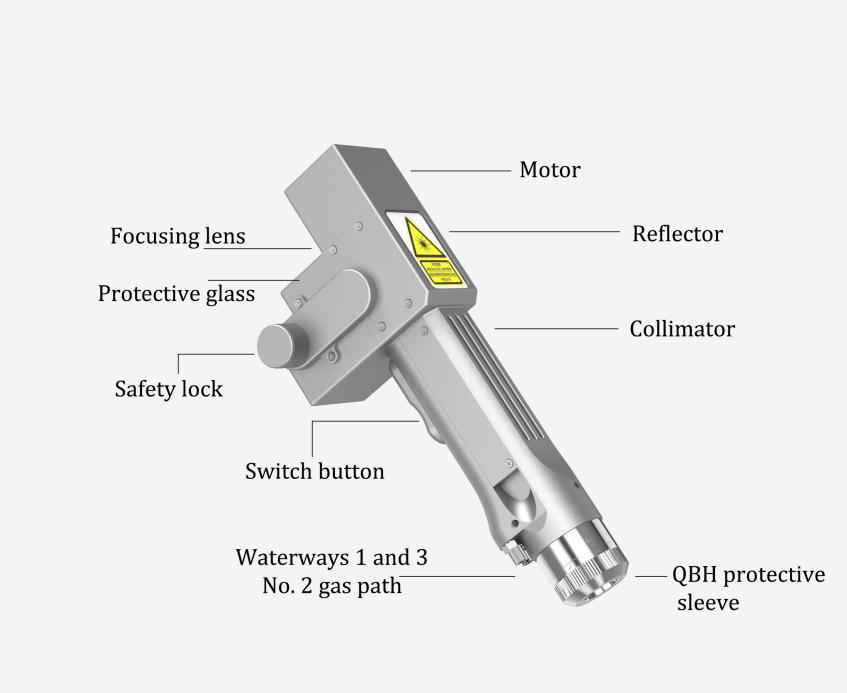

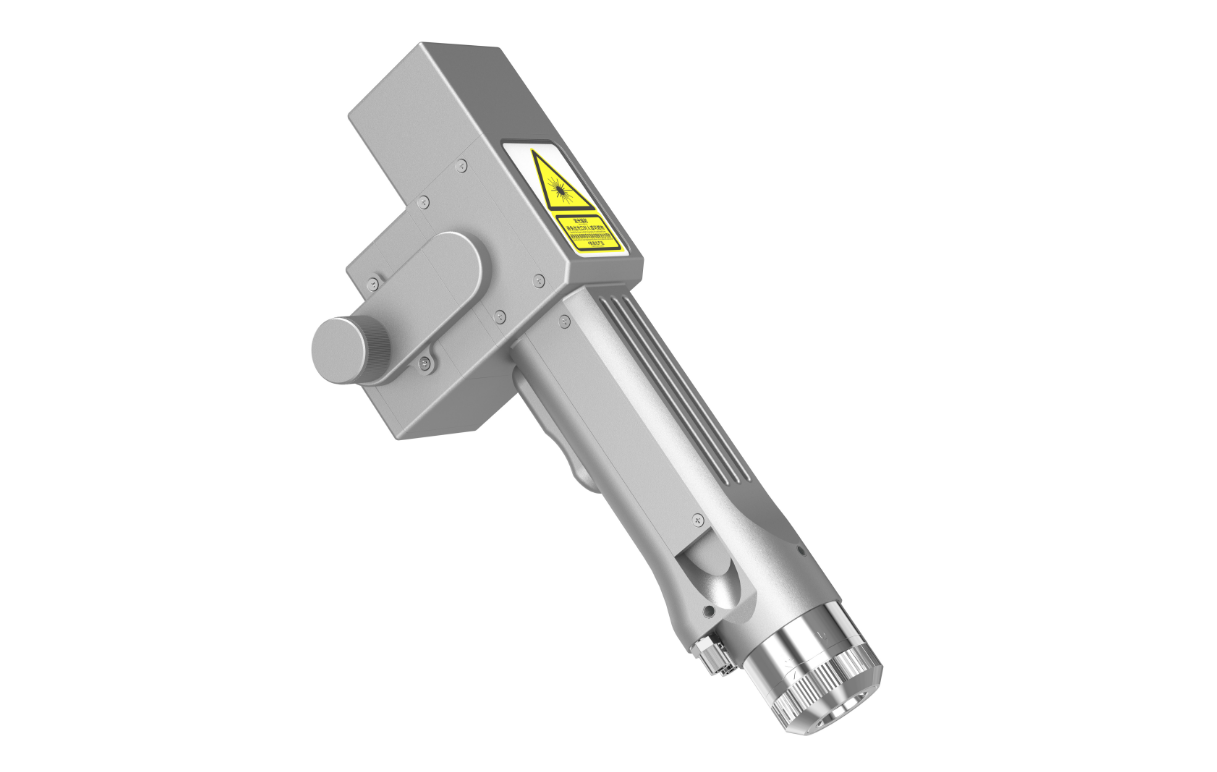

Dual/single axis galvo laser cleaning gun for option
Smaller size and flexible operation,drawer type protection mirrorand focus mirror easy to change.
Five scanning patterns.

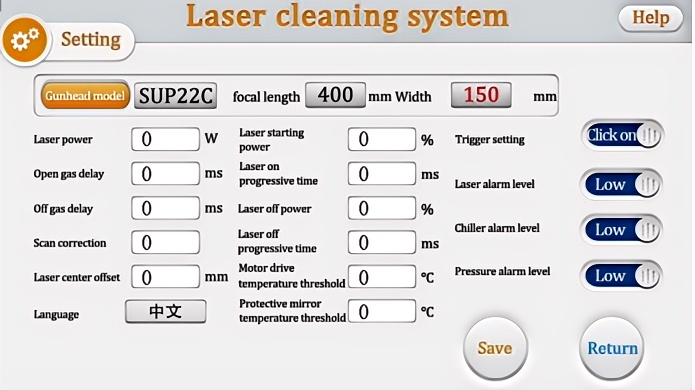

Touch control system

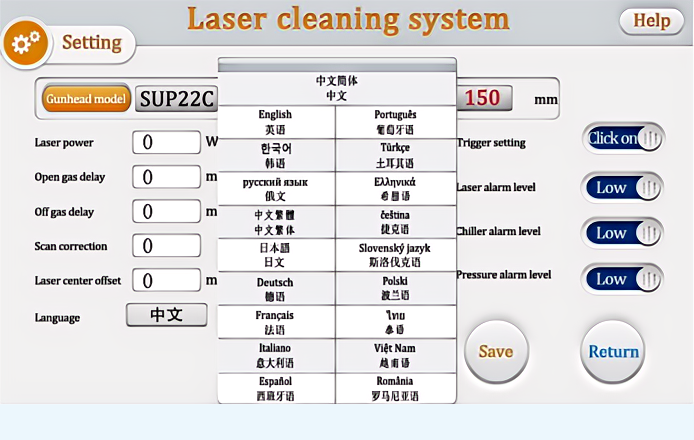

Easy to operate,contains a variety of languages,a variety of lightspot control.
Depth,standard,non-destructive three cleaning schemes.
CW Fiber Laser Cleaning Machine
CW handheld laser cleaning machine filled in the blank of hand-held cleaning in laser equipment industry, using the latest generation fiber
laser source and independently developed. Its advantages are simple operation, cleaning metal rust on thin stainless steel plate, iron plate,
aluminum plate and other metal materials.
Laser power: 1000W 1500W 2000W 3000W 6000W
Laser source brand: Raycus/Max/Jpt/Reci (optional)
Features:
1.High efficiency.
2.Simple interface operation.
3.Hand-held design is easy to carry.
Dual/single axis galvo laser cleaning gun for option
Smaller size and flexible operation,drawer type protection mirrorand focus mirror easy to change.
Five scanning patterns.
Touch control system
Easy to operate,contains a variety of languages,a variety of lightspot control.
Depth,standard,non-destructive three cleaning schemes.
Model | DCM-1000 | DCM-1500 | DCM-2000 | DCM-3000 |
Average Output Power | 1000W | 1500W | 2000W | 3000W |
Power Consumption | 4500W | 6000W | 7500W | 9000W |
Laser Wavelength | 1070nm | |||
Working Mode | Continuous or modulate | |||
Optical Fiber Length | 10m (customize) | |||
Diameter of Fiber Core | 50um | |||
Adjustment Range of Power | 10-100% | |||
Suitable Material | Metal, oil stains, oxide layer, etc | |||
Power Supply | 220V ± 10%,380V ± 10%/ 50/60Hz AC | |||
Cooling Type | Water cooling | |||
Working Time | 24 hours | |||
Working Temperture | 0℃-40℃ | |||
Size | 1300*746*1400mm | |||
Weight | 200KG |
Model | DCM-1000 | DCM-1500 | DCM-2000 | DCM-3000 |
Average Output Power | 1000W | 1500W | 2000W | 3000W |
Power Consumption | 4500W | 6000W | 7500W | 9000W |
Laser Wavelength | 1070nm | |||
Working Mode | Continuous or modulate | |||
Optical Fiber Length | 10m (customize) | |||
Diameter of Fiber Core | 50um | |||
Adjustment Range of Power | 10-100% | |||
Suitable Material | Metal, oil stains, oxide layer, etc | |||
Power Supply | 220V ± 10%,380V ± 10%/ 50/60Hz AC | |||
Cooling Type | Water cooling | |||
Working Time | 24 hours | |||
Working Temperture | 0℃-40℃ | |||
Size | 1300*746*1400mm | |||
Weight | 200KG |
