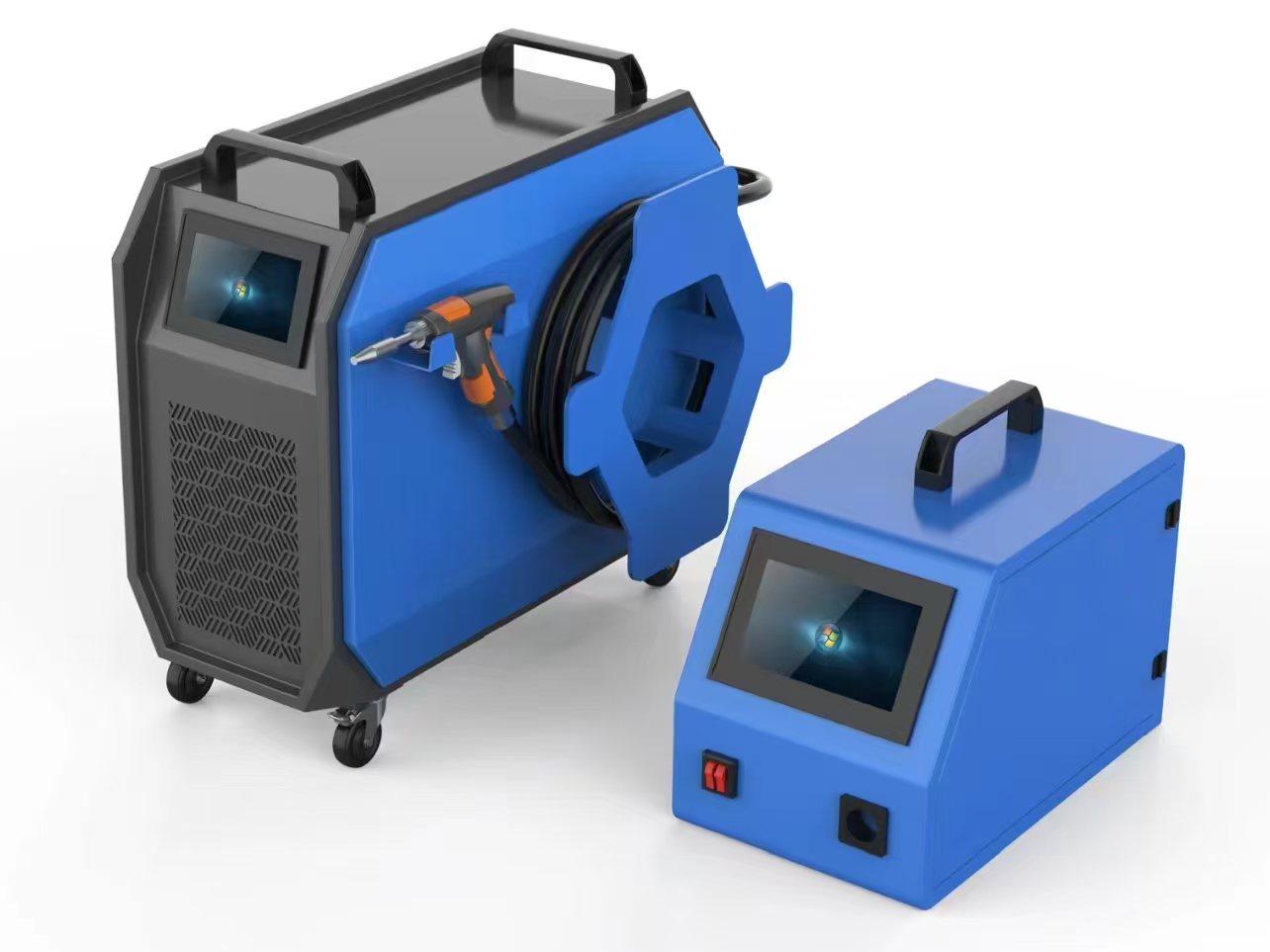

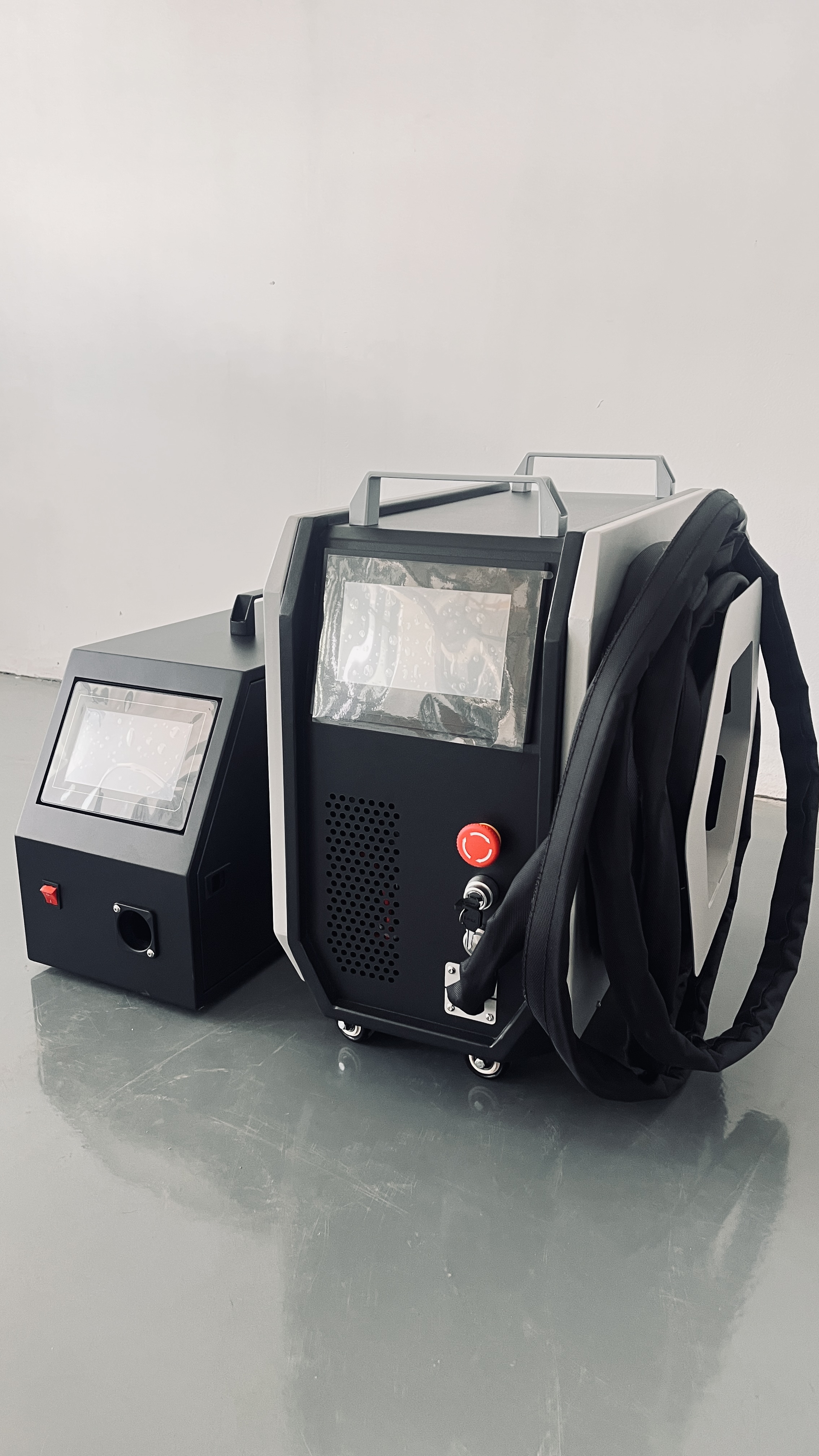

Handheld Air-cooling Laser Welding Machine

Handheld Air-cooling Laser Welding Machine
Structure & Performance: Integrated design, stable maintenance-free continuous fiber laser with swing welding joint, deeper penetration and wider weld than first-gen.

Laser power: 800W, 1200W, 1500W,2000W
Optical Fiber Length: 10m(customize)
Cooling system: Air cooling


Availability:
Quantity:
  • DOYA


Handheld Air-cooling Laser Welding Machine

Handheld Air-Cooling Laser Welding Machine - The whole machine adopts an integrated structure and is equipped with a stable, maintenance-free continuous fiber laser with a swing welding joint. Compared with the first-generation handheld laser welding machine, it has the advantages of greater penetration and a wider welding seam. It can perfectly replace traditional argon arc welding and other welding processes for thin stainless steel plates, iron plates, aluminum plates, and other metal materials.
It is a compact and efficient laser welding equipment. The air-cooling system does not require a water chiller, making it more portable, energy-saving, and less prone to failures. The machine is also simple and easy to operate; no special work certificate is required.

fd7daae101f22dd18301a2259581a88a

99036fdc-22e1-4fe9-8571-b1ec58b89e80

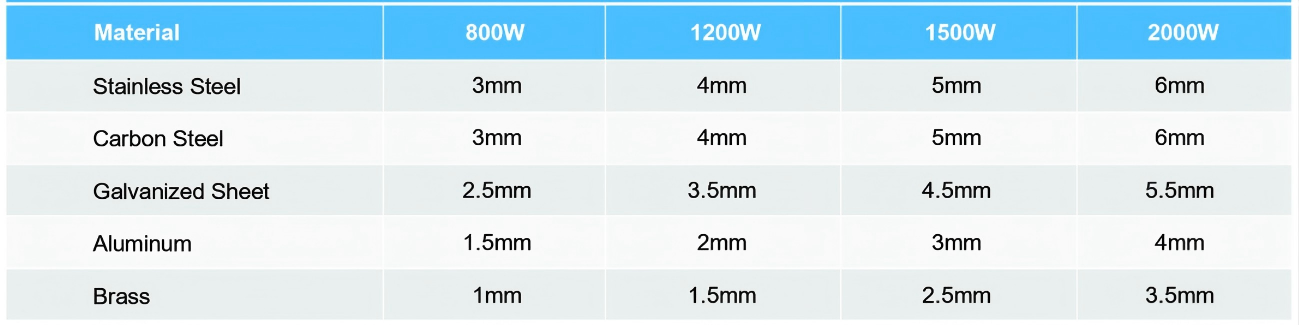

Air-cooling Laser Welding Machine Welding Thickness Reference Table

7155179e-76d7-4ff0-bd5a-6d44756d5674


8fb2f6b2-9c66-4d90-ace2-824942cacf4c Technical Parameters

  Qutput Power 800W/1200W/1500W/2000W
  Laser Wavelength 1080±10nm
  Working Mode continuous or modulate
  Optical Fiber Length 10 m(customize)
  Diameter of Fiber Core 50um
  Adjustment Range of Power 10-100%
  Auxiliary Gas Nitrogen /Argon
  Suitable Material Carbon steel,stainless steel,galvanized sheet,Aluminum,etc
  Power supply 110V/220V±10%;50/60Hz AC
  Welding Speed Range 0-120mm/s
  Welding Thickness Range 0.5-6mm
  Cooling Type Air cooling

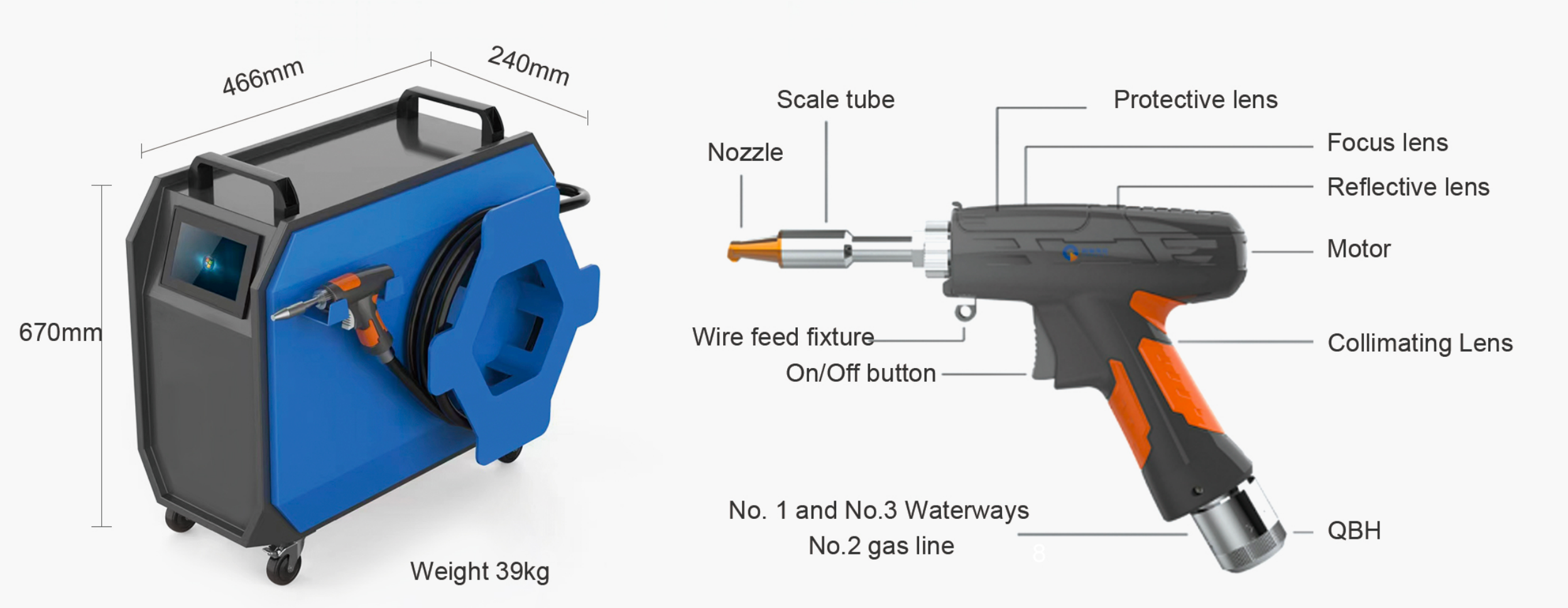

  Dimension 466*240*670mm(L*W*H)
  Weight 39KG

ab26803e-ec25-4368-978a-9a122d186e7d
