Laser Cutting Head Selection Guide

No universal laser cutting head exists. Processing scenarios impose vastly different requirements on optical path structure, nozzle layout, follow-up precision and protective performance. For most manufacturers, issues including unstable cutting, scrapped special-shaped workpieces, uneven bevels, piercing deformation during pipe cutting and directional laser reflection rarely stem from insufficient laser power. Instead, they are mainly caused by mismatched cutting heads for specific processing applications.

I. Flat Sheet Cutting: Standard Mass-Production General Model Focusing on High Efficiency and Stability

Flat metal sheet cutting represents the most fundamental laser processing application, applied to blanking of standard sheet metals such as carbon steel, stainless steel and aluminum plates. This scenario features regular cutting trajectories, stable workpiece flatness and no complex attitude changes. Selection priorities center on optical path precision and sustained heat dissipation capacity.

Flat-sheet-dedicated cutting heads adopt standard coaxial optical paths, conventional gas circuit layouts and high-precision capacitive follow-up systems. They deliver uniform focused laser spots, balancing high-speed precision cutting of thin sheets and stable piercing of thick plates. The resulting kerf is vertical with no dross adhesion. Featuring a compact, easy-to-maintain structure, this type serves as a cost-effective optimal choice for mass sheet metal production.

II. 3D Cutting: High-Sensitivity Follow-Up and Anti-Collision Design for Special-Shaped Workpieces

3D laser cutting is widely used for automotive panels, irregular sheet metals and three-dimensional structural components. Characterized by fluctuating curved surfaces, variable cutting angles and dynamic attitude switching, this application demands extremely high follow-up response and collision resistance from cutting heads.

3D-specialized cutting heads are equipped with highly sensitive real-time follow-up systems featuring faster response speeds to dynamically compensate for height deviations across curved surfaces. Matched with mechanical collision reset structures, they effectively mitigate collision risks during 3D machining. Meanwhile, an optimized lightweight body design enables high-speed linkage with robotic arms, eliminating jitter and focal point offset to guarantee consistent cutting quality for complex special-shaped workpieces.

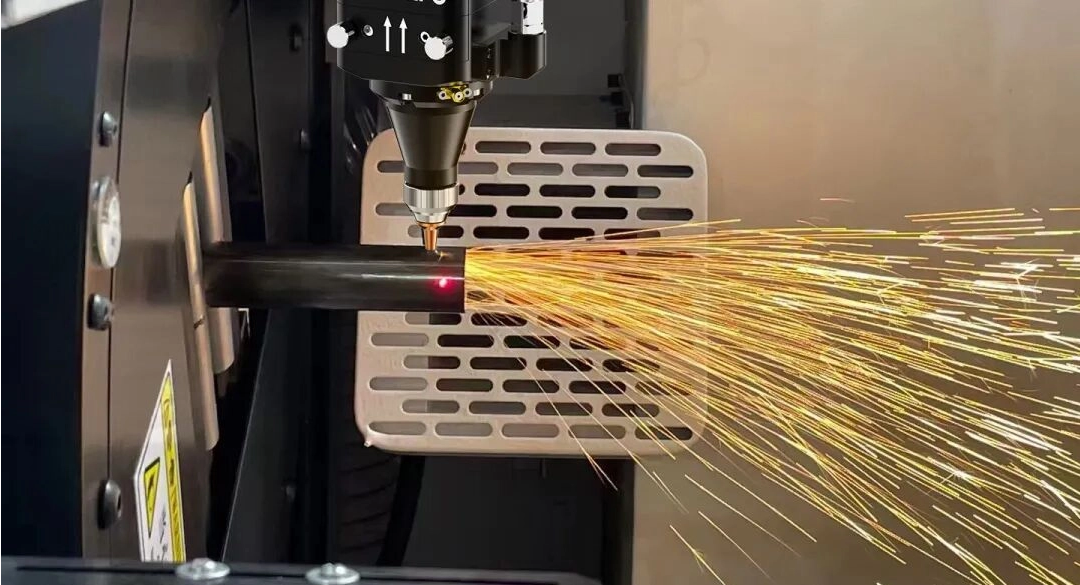

III. Pipe Cutting: Narrow-Cavity Design and Anti-Dross Accumulation for Hollow Profiles

Round tubes, square tubes and special-shaped pipes are hollow enclosed structures with narrow inner cavities prone to dross buildup and thermal deformation. Cutting heads frequently operate in close proximity to pipe inner walls during processing. Conventional cutting heads commonly suffer from nozzle interference, molten slag accumulation and blackened cutting surfaces.

Pipe-dedicated cutting heads adopt an elongated narrow-body structure and compact nozzle layout to avoid spatial interference. Optimized annular high-pressure gas circuits rapidly blow away molten slag inside pipes, reducing slag adhesion on inner walls and pipe surface burns. Compatible with cutting processes such as hole drilling, full cutting and arc cutting on all types of metal pipes, this model drastically improves the finished product yield of pipe workpieces.

IV. Bevel Cutting: Large Depth of Focus and Angle Adaptation for Precise Sloped Surfaces

Bevel cutting is primarily used for welding pre-treatment of steel structures and mechanical parts, requiring angled cutting ranging from 0° to 45°. When conventional cutting heads perform angled machining, they often produce distorted laser spots, inconsistent bevel widths and significant perpendicularity deviations on sloped surfaces.

Bevel-specialized cutting heads feature an optical design with a large depth of focus, maintaining uniform and stable laser spot energy even under tilted working conditions. They enable precise control of consistent bevel angles and depths, delivering smooth, uniform sloped surfaces that eliminate the need for secondary grinding. This greatly enhances welding matching accuracy and processing efficiency for steel structural components.

V. High-Reflective Material Cutting: Oscillation Anti-Reflection and Stable Laser Output to Prevent Lens Damage for Copper and Aluminum Machining

Metals including copper and aluminum are typical high-reflective materials with extremely high laser reflectivity. When processed with conventional cutting heads, reflected laser light easily backflows along the optical path, resulting in shattered protective lenses, blackened cutting surfaces and unstable piercing. These drawbacks not only generate high scrap rates but also frequently damage optical components and force equipment shutdowns, a widespread pain point in mass production of high-reflective materials.

High-reflective-material-dedicated oscillating laser spot cutting heads adopt a high-frequency dynamic spot oscillation structure that actively adjusts the laser incident angle to fundamentally suppress backflow of reflected light through the optical path and significantly reduce effective material reflectivity. This design thoroughly resolves common flaws of traditional cutting heads, such as fragile lenses, oxidized cutting surfaces and jitter during piercing. Boasting outstanding operational stability and high finished product yield, oscillating spot cutting heads represent an essential configuration for large-scale precision cutting of copper, aluminum and other high-reflective metals.
