Laser-Hybrid Welding: Key Technology for Automotive Camera Housing Manufacturing

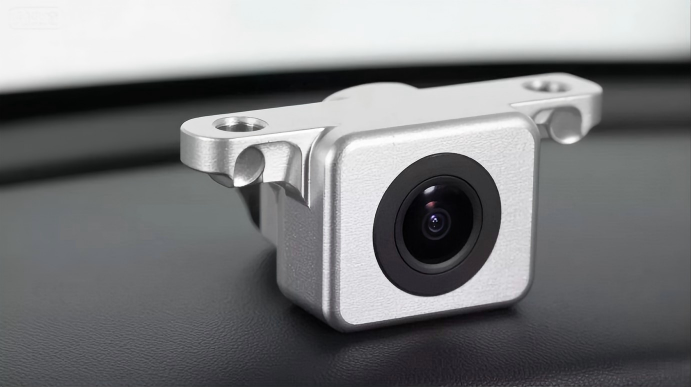

Amid the wave of automotive intelligence, automotive cameras serve as core sensors for autonomous driving and active-safety systems. Their manufacturing precision and reliability directly determine vehicle-safety performance. As the primary barrier protecting delicate internal optical and electronic components, alloy housings impose stringent requirements on manufacturing processes. Starting from technical principles, this paper systematically analyzes how laser welding addresses the welding challenges of metallic automotive-camera housings.

What is Laser-Hybrid Welding Technology?

Laser-hybrid welding is an advanced welding process developed in recent years. It coaxially combines two types of lasers with distinct characteristics — a semiconductor laser and a fiber laser — to generate synergistic laser beams. Each laser offers unique strengths:

· Semiconductor laser: Features a longer wavelength and broad energy distribution, delivering superior material preheating and energy-coupling performance.

· Fiber laser: Boasts a shorter wavelength and extremely high energy density, enabling deep-penetration welding.

During operation, the semiconductor laser preheats the material and reduces surface reflectivity, while the fiber laser focuses on high-quality deep-penetration welding. This synergistic effect achieves performance greater than the sum of its individual parts.

Technical Advantages of Laser-Hybrid Welding

1. Remarkably Improved Welding Quality

With the combined semiconductor-plus-fiber-laser configuration, the process yields a more stable molten pool and consistent, aesthetic weld beads. Compared with conventional single-source laser welding, laser-hybrid welding reduces porosity by more than 40 % and boosts welding strength by 15-20 %.

2. Low Spatter and High Welding Speed

Benefiting from its specialized beam-spot technology and dual-wavelength hybrid characteristic, the welding head minimizes spatter during welding and raises travel speed, improving both production efficiency and product quality.

3. Welding of High-Reflectivity Materials

Aluminum alloys are widely adopted for automotive-camera housings to cut weight. Nevertheless, aluminum’s high laser reflectivity has long posed a welding bottleneck. In laser-hybrid welding, preheating from the semiconductor laser effectively lowers surface reflectivity of aluminum alloys, allowing full utilization of fiber-laser energy and realizing high-quality aluminum welding.

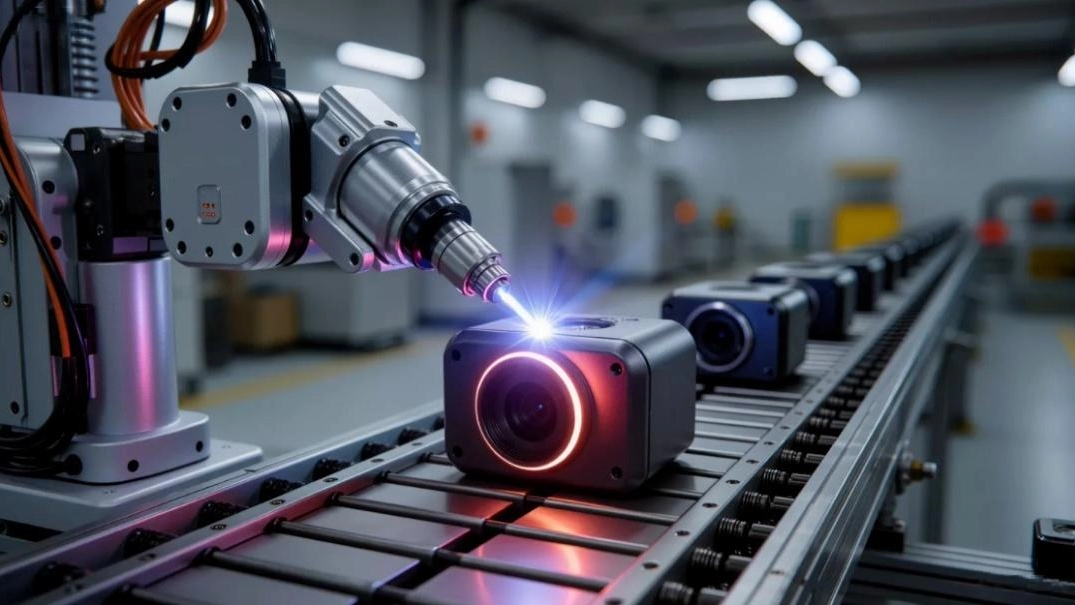

4. Automated Integration and High Production Efficiency

Driven by surging market demand for automotive cameras, the conventional “screw-and-gasket” fastening process suffers from slow cycle times and struggles to satisfy high-volume-production requirements. In contrast, deploying an automated laser-welding platform can drastically lift throughput, cut labor costs, and generate substantial economic benefits for manufacturers.
