MOPA (Master Oscillator Power Amplifier) pulsed fiber lasers feature independently adjustable pulse width and repetition frequency. With this unique advantage, they have become essential processing tools in the fields of electronic information (e.g., metal marking and welding) and new energy (e.g., photovoltaic cell scribing and lithium battery pole piece cutting). However, service life is the top concern for users during model selection and daily operation of MOPA pulsed fiber lasers. Based on practical engineering experience, this paper analyzes the lifetime determination mechanism of MOPA pulsed fiber lasers and summarizes product life extension strategies from three dimensions: design, production and application.
Laser service life is not a single time node, but a comprehensive concept covering multiple engineering definitions:
Service Life: The duration from the commissioning of a laser to performance degradation that fails to meet process requirements. It does not refer to complete breakdown, but the unacceptable deterioration of output power or beam quality. In engineering practice, a laser reaches the end of its service life when it suffers severe aging or damage with no maintenance value.
Mean Time Between Failures (MTBF): A core indicator for reliability evaluation, representing the average working time between consecutive failures. A higher MTBF value indicates better operational stability. More extreme design and operating parameters will lead to a shorter MTBF.

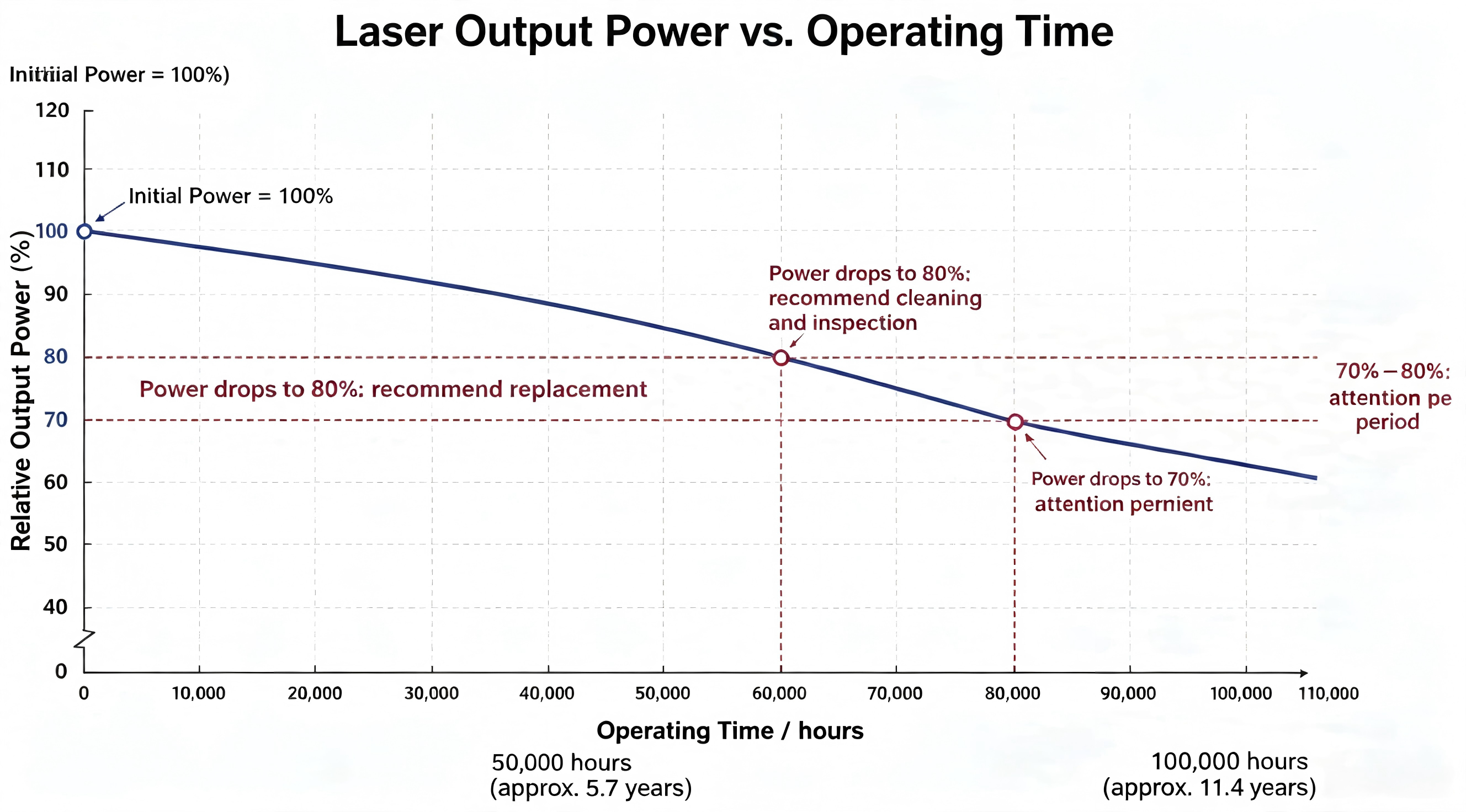

Degradation Lifetime: The typical failure mode of most lasers is gradual attenuation of output power with operating time. To guarantee processing quality and yield, lasers are usually decommissioned in advance when the output power drops to 70%–80% of the initial level.
Industrial-grade MOPA pulsed fiber lasers generally have a designed service life of up to 100,000 hours, equivalent to approximately 11.4 years of 7×24-hour continuous operation. It is worth noting that the increase in average and peak power will significantly raise the internal optical power density, thermal load and back-reflected light during operation, thereby reducing the overall service life. Pulsed lasers have multi-dimensional adjustable parameters (pulse width, frequency, peak power, average power, etc.) and a wide variety of models and specifications, leading to substantial lifetime differences among different design architectures. No unified and definitive lifetime standard has been established in the industry. Based on comprehensive engineering practices, a reasonable lifetime estimation range is 50,000 to 100,000 hours. The actual service life fluctuates within this range depending on design margin, production quality control, operating conditions and maintenance standards.
From the perspective of system engineering, the lifetime of MOPA pulsed fiber lasers is jointly determined by five dimensions: optical scheme, circuit hardware, structural thermal control, software control and process application, among which the optical scheme is the most critical.

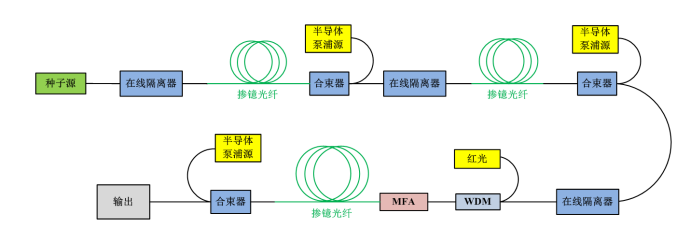

MOPA Optical Path Block Diagram
The optical path of MOPA pulsed fiber lasers consists of core components including seed source, in-line isolator, gain fiber, beam combiner, collimating isolator and fiber fusion splice, and the reliability of each component affects the overall service life of the laser.
Seed Source: As the signal light source, seed sources are generally semiconductor lasers or fiber lasers. The power stability, central wavelength drift and relative intensity noise of the seed source directly determine the operating state of the amplification stage. Low-quality seed sources suffer from power fluctuation or wavelength drift, causing additional stress or timing misalignment in subsequent amplification stages and accelerating aging or failure.
In-line Isolator: Installed between the seed source and the amplifier or between two stages of amplifiers, in-line isolators prevent backward reflected light generated by the rear amplification stage from damaging the seed source or front-stage amplifier. Key performance indicators include power tolerance, isolation (typically >30dB) and insertion loss. Reduced isolation will expose the seed source and front-stage amplifier to damage from backward reflected light, while increased loss leads to insufficient signal power and forces pump sources to operate at higher power, both of which shorten the laser lifetime.
Gain Fiber: Generally ytterbium-doped double-clad fiber. Under high-power pumping conditions, gain fibers suffer from photodarkening, a unique chronic failure of fiber lasers. Color centers form inside the fiber and induce additional absorption loss, resulting in gradual output power attenuation. The photodarkening rate is closely related to core doping concentration, pump power density and operating temperature. High-quality gain fibers adopt special doping and pre-treatment processes to effectively suppress photodarkening. Excessively small bending radius or excessive operating temperature will also accelerate the aging and failure of fiber coatings.
Beam Combiner: Couples pump light from single or multiple pump sources into the inner cladding of gain fiber. Coupling efficiency, heat dissipation performance and signal loss are critical indicators. Low coupling efficiency converts more pump light into heat, causing local overheating at the combiner fusion point and coating and accelerating the aging of optical fiber devices.
Collimating Isolator: Mounted at the laser output end, it integrates laser collimation and backward light isolation. Back-reflected light generated during the processing of high-reflectivity materials (aluminum, copper, electroplated parts) is mainly isolated and absorbed by the collimating isolator. Insufficient isolation capacity allows reflected light to return along the optical path and form giant pulses, which instantly burn out the amplifier optical path — the most common invisible cause of on-site laser failure.
Fiber Fusion Splice: Every fusion splice in the all-fiber structure is a potential failure point, especially the pump injection splice of the final-stage amplifier. Fusion loss is converted into heat, triggering aging or burnout of the splice coating. High-quality fusion (loss <0.05dB) and protective packaging of splices are essential guarantees for system reliability.
The overall reliability of the optical scheme depends on component selection quality, parameter matching consistency and process stability. Any weak link will become the bottleneck of the overall laser lifetime. The typical failure rate of optical components within the warranty period ranges from 0.1% to 1%. Complex optical structures with more components face higher reliability risks.
Circuit hardware reliability depends on the quality and derating design of core electronic components such as pump drivers, seed source constant current sources and main control circuits. It also faces two easily overlooked reliability threats.
Timing Misalignment of Multi-stage Amplifiers: MOPA structures usually adopt multi-stage amplification. Excessive ambient temperature or abnormal power supply interference may alter the operating performance of seed sources and pump sources, causing timing misalignment between pump current and seed source electric pulses, and further leading to abnormal self-excitation and burnout of amplifiers.
Electromagnetic Interference and Power Supply Abnormity of External Interfaces: Lasers are connected to on-site power supplies and control signals via external connectors. Excessively long wiring or strong on-site electromagnetic interference (e.g., linear motors) may cause false triggering or loss of control signals. Shared power supply circuits with high-power equipment will lead to voltage drop, surge and harmonic interference, impacting drive circuits and causing pump source current overshoot or false under-voltage protection. Long-term cumulative impact will damage internal electronic components.
Lasers are equipped with water-cooled and air-cooled heat dissipation systems, each with independent failure modes:
Water-cooled Lasers: The primary risk lies in cooling water quality. Long-term operation with low-quality cooling water containing excessive ions causes corrosion of metal cold plates, producing flocculent sediments that block internal cooling channels or even lead to perforation and leakage. Reduced flow rate or local blockage deteriorates the heat dissipation of pump sources, gain fibers and combiners, resulting in temperature rise and accelerated performance degradation.

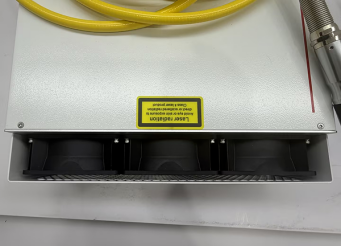

Air-cooled Lasers: Key risks include unobstructed heat dissipation channels and shell tightness. Fans inhale large amounts of oil stains and dust, which adhere to heat dissipation fins and sharply increase thermal resistance. In metal processing environments, metal dust invading the chassis through structural gaps may fall on circuit boards and cause short-circuit risks.

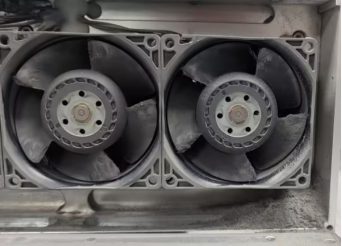

Clean heat dissipation fins vs dust-clogged heat dissipation fins
Software defects do not directly damage hardware, but act as latent threats to laser service life:
Incomplete Operating Logic: Laser switching of MOPA pulsed fiber lasers follows strict timing logic. Imperfect switching logic control for multi-stage amplifiers during parameter switching will cause abnormal operation or even equipment damage.
Abnormal Protection Logic: Faults such as false or missing power monitoring alarms, abnormal temperature and humidity detection, and abnormal output terminal on-off monitoring will trigger laser failures.
Unstable Communication and Firmware: Software crash and communication interruption may trap the laser in a high-power output state, failing to complete parameter switching or stop operation timely.
These software-induced faults are usually intermittent and difficult to troubleshoot. Long-term accumulation of such problems degrades operating experience and may shorten the overall service life in severe cases.

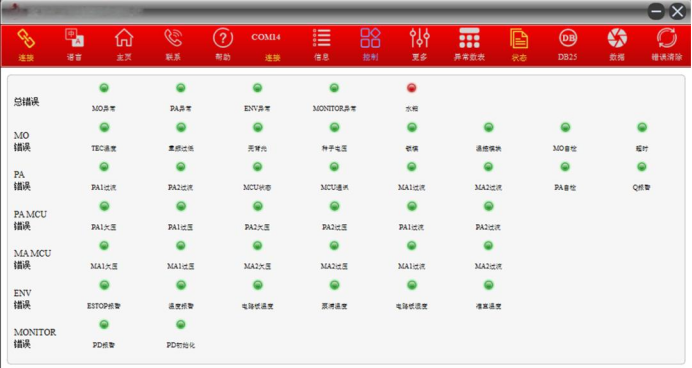

GUI software interface
Even perfectly designed lasers will experience accelerated performance attenuation due to improper process application:
Backward Reflection: Processing high-reflectivity materials (aluminum, copper, mirror stainless steel, electroplated parts) generates backward reflected light into the laser interior. Even with isolators, excessive reflected light will damage internal lenses and crystals of isolators. Insufficient isolation allows reflected light to enter the final-stage amplifier, causing unstable output and eventual burnout.

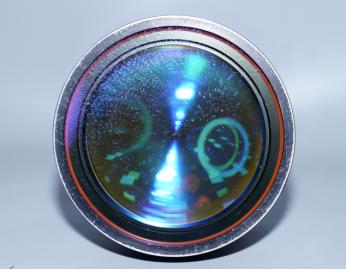

Optical Contamination: Smoke and spatter generated during processing adhere to collimating lenses, field lenses and output windows. Contamination layers absorb laser energy and convert it into heat, resulting in lens cracking or reduced transmittance. Users have to increase output power to maintain processing effects, forming a vicious cycle that accelerates overall equipment aging.
Processing high-reflectivity materials
Lenses covered with smoke spatter vs clean lenses
Life extension strategies are systematically implemented from three dimensions: design, production and application.
1. Power Margin Design: The actual operating current of pump sources and seed sources is designed to 70%–80% of the rated value to reserve degradation margin. Derated operation is one of the most effective methods to improve equipment reliability.
2. Redundant Thermal Control Capacity: The heat dissipation system is designed with redundant capacity to ensure stable laser operation even under the maximum rated operating temperature and power, keeping core components within a safe temperature range.
3. Anti-reflection Design: Reasonable inter-stage gain allocation and output-end isolation design minimize the proportion of reflected light returning to fiber amplifiers, ensuring stable operation of amplifiers without damage under minor reflected light interference.
4. Intelligent Protection Logic: Built-in hardware and software strategies including power monitoring, automatic power compensation and temperature compensation enable automatic intervention in abnormal states before users detect faults.
1. Graded Material and Component Inspection: Classify and screen incoming materials according to batch and performance differences, eliminate defective products, and match components with appropriate power-grade lasers.
2. Standardized Fusion Process: Optimize process control for key fusion points, improve fusion coating technology, and strictly control bright spots and hot spots on fusion joints.
3. Multi-stage Testing and Aging: Implement full-process quality control including circuit testing, amplifier module testing, complete machine testing, long-term aging testing and pre-delivery re-inspection to screen out unqualified products.

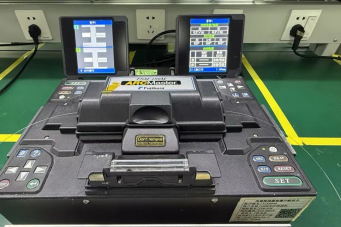

Fusion Splicer

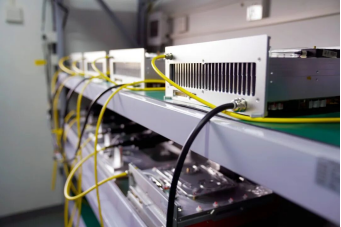

Aging Test Workshop
1. Avoid Long-term Full-power Operation: Daily processing power is controlled within 80% of the rated power to significantly extend service life. It is recommended to select equipment with rated power slightly higher than actual demand to reserve sufficient operating margin.
2. Strictly Control Operating Environment and Cooling Medium: For water-cooled lasers, replace deionized water or special coolant regularly, and monitor water hardness and pH value to prevent scaling and corrosion. For air-cooled lasers, clean heat dissipation fins and dust screens periodically. Use antifreeze for water-cooled equipment in low-temperature winter environments.
3. Prevent Backward Reflection Damage: Adopt defocusing and deflection angle processing methods to avoid original-path return of reflected light when processing high-reflectivity materials. For frequent processing of high-reflectivity workpieces, select lasers with dual-stage isolators for enhanced anti-reflection performance.

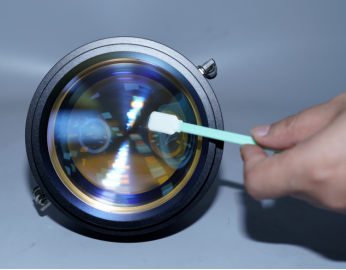

4. Maintain Optical Lens Cleanliness: Ensure optical path tightness, and clean optical components such as field lenses and beam expanders regularly to avoid local overheating and forced power increase caused by contamination.
5. Guarantee Power Supply and Signal Integrity: Adopt independent power supply circuits equipped with voltage stabilizers or UPS for lasers, and avoid sharing circuits with high-power equipment such as welding machines and air compressors. Arrange control cables reasonably with appropriate length and avoid crossing with power cables.
6. Reduce Unnecessary Power On/Off Cycles: Keep the laser in standby state during short-term shutdowns instead of frequent power cuts, so as to reduce current impact and stress generated during timing initialization.

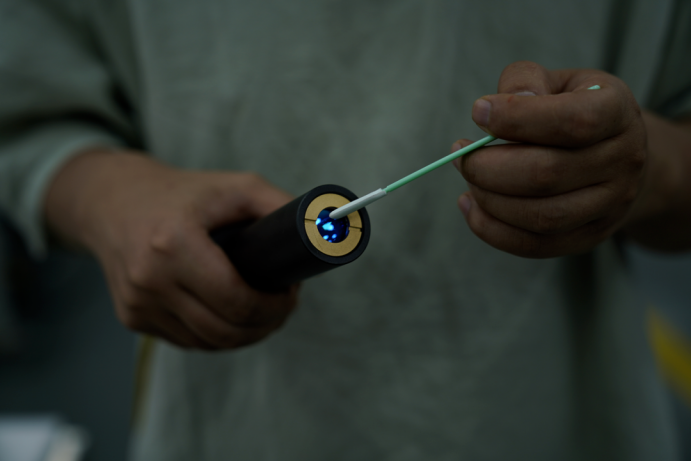

Clean beam expander and isolator
Amid the fiercely competitive market, it is reasonable for laser manufacturers to pursue cost-performance. However, excessive cost reduction and configuration cutbacks, such as insufficient design margin of components, inadequate component verification during rapid version iteration, and severely compressed reliability test cycles, will greatly reduce the expected service life of lasers. For laser equipment users, understanding the objective laws of laser service life and adopting scientific model selection and maintenance habits are not only the key to reducing comprehensive operating costs, but also the important foundation for ensuring continuous production. Reliability and service life should be prioritized in research and development and system design, rather than simply pursuing economic benefits and structural compactness.
